Middleware

Keq adopts a middleware model similar to koa. This gives Keq powerful custom extension capabilities.

Many third-party libraries that extend the Fetch API can be found on NPM. These libraries often provide APIs like wrap(fetch). For example: fetch-retry, node-fetch-har, fetch-enhanced.

This leads us to maintain messy code like wrapX(wrapY(wrapZ(fetch))). And it's difficult to precisely control each wrapper to give different default parameters for different routes.

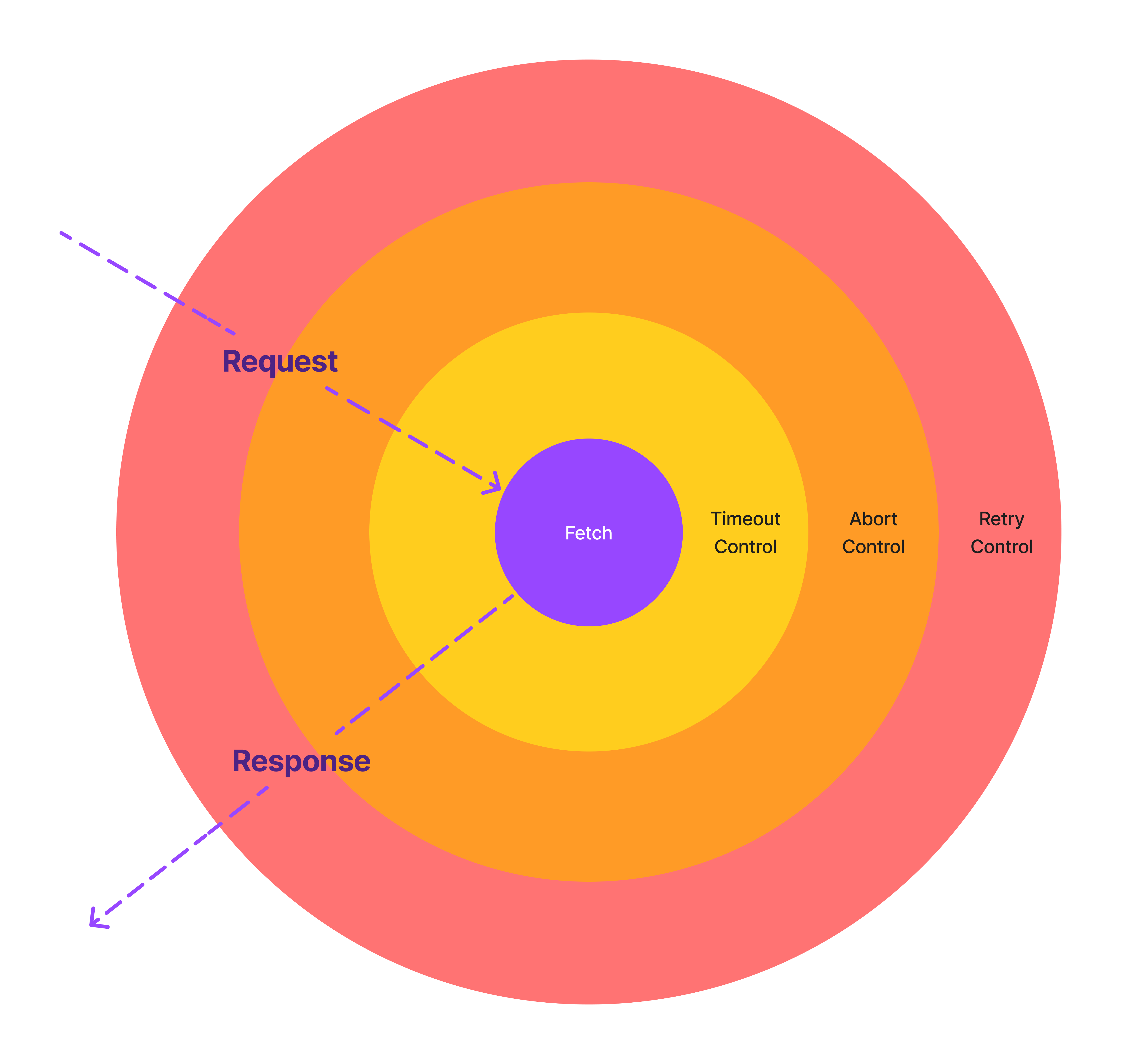

Onion Model

Keq Middleware

Keq's core functionality is also implemented through layers of composed Middleware, and the Fetch API used to send requests is also a Middleware.

When calling Keq's API to send a request, the Request parameters are processed layer by layer through Middleware, finally reaching the Fetch API Middleware. The Fetch API Middleware will send the request and return a Response. Finally, the Response is processed again through layers of Middleware before being returned to the caller.

tip

Keq is composed of 5 layers of built-in Middleware. The diagram only labels 4 layers for clarity. The 5 layers from outer to inner are:

retryMiddleware: Provides retry functionality on failure
flowControlMiddleware: Provides concurrency control functionality
timeoutMiddleware: Provides request timeout control functionality
proxyResponseMiddleware: Constructs the context.response property based on context.res.
fetchMiddleware: Sends requests based on context.request parameters and writes the Response to context.res.

Custom Middleware

Middleware is actually an async function that receives two parameters context and next:

Parameter	Description
`context` (1st param)	Request context, which contains all request parameters and response results.
`next` (2nd param)	Execute the next layer of `Middleware`. Modifying `context.request` before `next` executes will affect the actual request sent. After `next` executes, you can access `context.response` to get the request result for further processing.

Next, let's add a simple Middleware for handling request errors to familiarize ourselves with Middleware.

import { request } from "keq"

request
  .use(async (context, next) => {
    await next() // Call next layer middleware until fetch

    if (context.response) {
      if (!context.response.status !== 200) {
        alert(`${ctx.request.url.href} is not 200`)
        throw new Error("The Response is not 200.")
      }
    }
  })

try {
  await request.get("http://example.com/cat")
} catch (err) {
  // If the /cat API response status code is not 200, an exception will be caught
  console.log(err)
}

The above code adds a Middleware that checks all request response status codes by calling request.use(middleware). However, in actual projects, we will face many different API providers and need to apply Middleware accordingly. Keq provides flexible routing methods for this:

import { request } from "keq"

request
  .useRouter()
  .host('example.com', async (context, next) => {
    await next()

    if (context.response) {
      if (context.response.status !== 200) {
        alert(`${ctx.request.url.href} is not 200`)
        throw new Error("The Response is not 200.")
      }
    }
  })

try {
  await request.get("http://example.com/cat")
} catch (err) {
  // If the /cat API response status code is not 200, an exception will be caught
  console.log(err)
}

Through request.useRouter().host(hostName, middleware), the Middleware will only take effect when the request domain is "example.com". Next, we can encapsulate the Middleware code into an independent function for easy reuse on different routes:

import { KeqMiddleware, request } from 'keq'

function responseValidator(): KeqMiddleware {
  return async (context, next) => {
    await next()

    if (context.response) {
      if (context.response.status !== 200) {
        alert(`${ctx.request.url.href} is not 200`)
        throw new Error("The Response is not 200.")
      }
    }
  }
}

request
  .useRouter()
  .host('example.com', responseValidator())
  .pathname('/api/**', responseValidator())

.useRouter() will match all requests that meet the rules. If we want individual requests not to run alert, we can add option to Middleware:

import { KeqMiddleware, request } from 'keq'

declare module 'keq' {
  interface KeqOptions<T> {
    silent(value: boolean): Keq<T>
  }
}

function responseValidator(): KeqMiddleware {
  return async (context, next) => {
    await next()

    if (context.response) {
      if (context.response.status !== 200) {
        if (!context.options.silent) {
          alert(`${ctx.request.url.href} is not 200`)
        }

        throw new Error("The Response is not 200.")
      }
    }
  }
}

request.use(responseValidator)

// This request won't trigger `alert` even if it fails
await request
  .get('/cat')
  .option('silent', true)

In addition to handling responses, we can also modify request parameters before sending the request. Let's implement another middleware that adds x-site: us to the request headers:

import { KeqMiddleware } from 'keq'

function appendSiteHeader(site: string = 'us'): KeqMiddleware {
  return async (context, next) => {
    context.request.headers.append('x-site', site)

    await next()
  }
}

request
  .useRouter()
  .host('example.com', appendSiteHeader('cn'))

Context

By interacting with context, Middleware can completely control request behavior. The table below lists all built-in properties of context and their functions:

Property	Description
`context.request`	HTTP request parameters
`context.abort()`	ReadOnly Abort the current request
`context.global`	Data stored in `context.global` will not be destroyed with `context` after `request` completed. Please be aware of memory overflow issues when using it.
`context.res`	Original `Response` object. Added to `context` by `fetchMiddleware` after the request is successfully sent. Use `context.response` whenever possible unless you really need the raw `Response`.
`context.response`	Proxy of `context.res`, solving the problem that `Response`'s `.json()`, `.text()` and other methods cannot be called multiple times, which would cause errors when multiple `Middleware` repeatedly get the response body.
`context.output`	WriteOnly Change the return content of `await request.get('xxx')`. (This property is invalid when calling `.resolveWith()`).
`context.identifier`	ReadOnly Unique key that marks the request code location.
`context.metadata`	Context information of the current middleware. Often used to check the execution status of middleware.
`context.options`	Custom options set by `request.get('xxx').option(key, value)`. `Middleware` can add its own `options`.

`context.request`

Property	Description
`context.request.url`	HTTP request URL
`context.request.__url__`	Readonly HTTP request URL with merged route parameters (`routeParams`)
`context.request.method`	HTTP request method ('get', 'post', 'put', 'patch', 'head', 'delete')
`context.request.body`	HTTP request body
`context.request.headers`	HTTP request headers
`context.request.routeParams`	Route parameters in the HTTP request URL
`context.request.catch`	Fetch API `catch` parameter
`context.request.credentials`	Fetch API `credentials` parameter
`context.request.integrity`	Fetch API `integrity` parameter
`context.request.keepalive`	Fetch API `keepalive` parameter
`context.request.mode`	Fetch API `mode` parameter
`context.request.redirect`	Fetch API `redirect` parameter
`context.request.referrer`	Fetch API `referrer` parameter
`context.request.referrerPolicy`	Fetch API `referrerPolicy` parameter

`context.options`

context.options allows the request caller to adjust the runtime logic of Middleware at any time and anywhere. It also allows outer Middleware to change the runtime logic of inner Middleware by modifying context.options.

Property	Default	Description
`context.options.fetchAPI`	`global.fetch`	The Fetch API used by `fetchMiddleware` to send HTTP requests. Can be replaced with `node-fetch` or other NodeFetch-compatible packages.
`context.options.resolveWith`	`"intelligent"`	How to parse the `Response` body. When set, `context.output` will be invalidated.
`context.options.retryTimes`	`undefined`	Number of retry attempts.
`context.options.retryDelay`	`undefined`	Retry interval time.
`context.options.retryOn`	`undefined`	Custom retry condition.
`context.options.module`	`undefined`	The module to which the request belongs.
`context.options.flowControl`	`undefined`	Adjust the concurrent execution behavior pattern of the request. When modified, it will adjust the runtime behavior of `flowControlMiddleware`.
`context.options.timeout`	`undefined`	Modify the request timeout. When modified, it will adjust the runtime behavior of `timeoutControlMiddleware`.

`context.global`

Property	Default	Description
`context.global.serialFlowControl`	`undefined`	Used to implement `.flowControl('serial')` mode.
`context.global.abortFlowControl`	`undefined`	Used to implement `.flowControl('abort')` mode.

`context.metadata`

Middleware only needs to operate context.metadata in very rare scenarios.

Property	Description
`context.metadata.finished`	Whether the current middleware has finished executing.
`context.metadata.entryNextTimes`	How many times `next` was called before the current middleware ended.
`context.metadata.outNextTimes`	How many times `next` completed execution before the current middleware ended.

Router (`.useRouter()`)

Method	Description
`.location(...middlewares)`	In browsers, routes requests to `window.location.origin` to `middlewares`. In Node.js, routes to `127.0.0.1`
`.method(method: string[, ...middlewares])`	Routes requests matching `method` to `middlewares`.
`.pathname(matcher: string \| Regexp[, ...middlewares])`	`matcher` can be a glob (minimatch) expression or regular expression, and routes matching requests to `middlewares`.
`.host(host: string[, ...middlewares])`	Routes requests sent to `host` domain to `middlewares`.
`.module(moduleName: string[, ...middlewares])`	Routes requests of `moduleName` module to `middlewares`.
`.route(...middlewares)`	Custom routing strategy

`createRequest`

Call createRequest() to create an independent request instance. Middleware and context.global between multiple request instances will not be shared.

import { createRequest } from "keq"

const customRequest = createRequest()

// Middleware will only take effect in customRequests
customRequest.use(/** some middleware */)

const body = await customRequest.get("http://test.com")

The request instance you reference from 'keq' is also created through createRequest().
